ME "Ivano-Frankovskvodecotechprom", Ivano-Frankovsk City, Chernyev settlement

ME "Ivano-Frankovskvodecotechprom", Ivano-Frankovsk City, Chernyev settlement

Ivano-Frankovsk City,
ME "Ivano-Frankovskvodecotechprom",
Chernyevskyi Complex of Water Cleaning Facilities, Chernyev settlement
Drinking water
October 2012




TARGET: To resolve problems associated with transportation, storage and circulation of hypochlorite of "A" mark. And to select the most effective drinking-water disinfection technology in respect to the local water treatment facilities complex special features.

Water source - river Bystritsa
Productive capacity - 90000 m3 per 24 hours
Maximum flow - 92,5 m3 per minute
Pressure after onshore pump station and before clear-water reservoir - 1,8 bar
Pressure after clear-water reservoir - natural flow
Dosage - after filter before clear-water reservoir
Chlorine residual at the city output - 1,1 mg/dm3
Disinfection method - imported chlorine of "A" mark

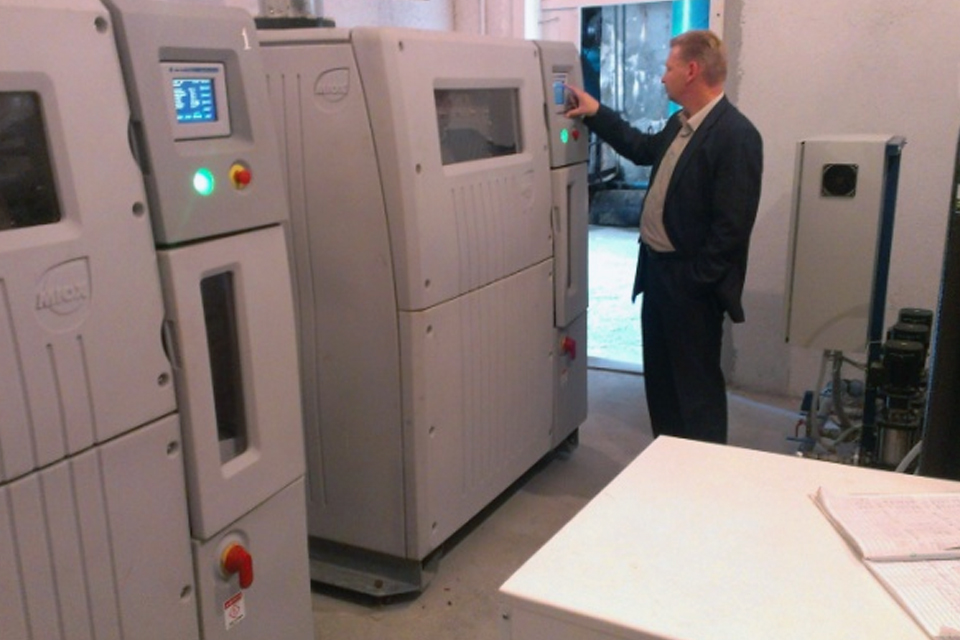

SOLUTION:Mixed oxidants production system consisted of two MIOX RIO M-5 generators. The system has all the main facilities reserve.

System capacity - up to 272 kg of active Cl2 per 24 hours (including reservoir)
Dosage method - primary - before filters and secondary after filters and before clear-water reservoir
Chlorine residual at the city output - 0,6-0,7 mg/dm3
Dosage system - automatic
Raw materials stock (salt) - up to 5 months
Salt volume in salt dissolver - for 30 days
Mixed oxidants volume in storage tank - for 24 hours
