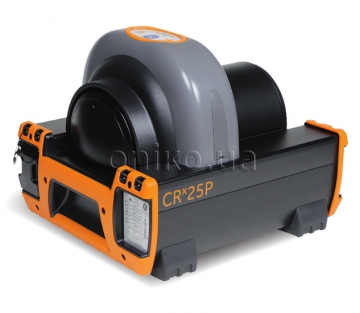

The CRx25P computed radiography scanner from GE’s Inspection Technologies business combines portability and durability with simple operation to create high-quality digital images within seconds.

The scanner is constructed to withstand the demanding conditions of industrial radiography for both in house and field service applications.

Designed for Field Service

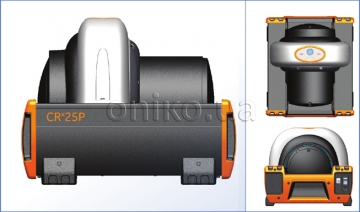

Weighing only 21 kg (46 lb), the CRx25P is a truly portable computed radiography system designed especially for applications requiring multiple relocation.

The scanner offers a portable digital imaging solution for in-house, field and even off-shore applications where size and weight portability are critical to the environment and workflow.

A lightweight extruded aluminum frame resists dents. Rubberized isolating/damping feet minimize vibration and thus protect image quality. Users can select a rugged hard case. For operation in almost any environment, a built-in rechargeable battery option is also available.

Key Features

• Truly portable computed radiography system suitable for in-house and field service
• High and standard resolution images, capable of a resolution of 17 micron, 25 micron, 50 micron and 100 micron
• Can operate in direct sunlight
• Eliminates need for film, chemicals, and processor maintenance, as well as storage and disposal procedures
• Accepts phosphor imaging plates up to 35 cm (14 inch) wide by any practical length, and custom shapes
• Flexible, wire-free imaging plates to conform to object shape
• Feed guide supports long imaging plates
• Works with X-ray and gamma sources including Se 75, Ir 192 and Co 60
• Customizable settings for optimum dynamic range
• Built-in eraser with manual or auto erase function
• Lightweight extruded aluminum frame

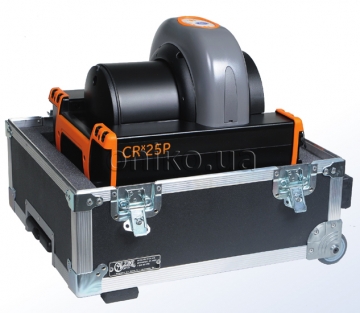

• Hard-cases available for transportation
• Optional self-contained battery

Critical decisions on the spot

The new scanner produces excellent quality digital images in just seconds. The image quality is reliably consistent and results are repeatable, enabling you to make critical decisions in almost real time.

Simple, Familiar Operation

The CRx25P scanner is extremely easy to use as it is seamlessly integrated into the Rhythm Software architecture. Imaging procedures are familiar because the system is built on familiar film techniques.

Obtain quality digital images in three steps — Expose, Insert and View.

These radiography systems produce a digital image by scanning reusable phosphor imaging plates (IP) coated with an X-ray photostimulable material.

When exposed to X-ray or gamma rays emissions, the plate stores the image. Once the CRx25P scans the plate, the image is ready for viewing on a computer within seconds.

An in-line erase feature allows you to erase images in a single continuous cycle, so that you can immediately reuse the plates.

The CRx25P accepts Imaging Plates in all standard sizes up to 35 cm (14 in) wide, and a feed guide supports long plates during scanning.

Focus on Image Details

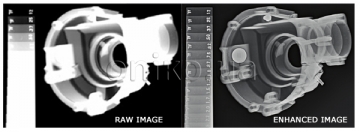

Once you have scanned the images into a computer, you can use Rhythm imaging software, delivered together with the scanner to magnify, invert, sharpen and enlarge the images.

You can alter brightness and contrast or apply line segment and angle measurement tools Optional software tools like Flash!Filters enable instant image enhancement for faster reviewing and immediate decision-making.

DICONDE image standards support retaining images and notes in a single file for consistent data management.

Economical and Eco-Friendly

By eliminating the need to chemically process film (along with the related costs including storage and disposal), the CRx25P cuts imaging expenses. Also, digital imaging aids in protecting the environment from harmful chemicals.
