InfraTec ImageIR® 8800

High-end Thermography Camera

Cooled FPA photon detector with (640 × 512) IR pixels

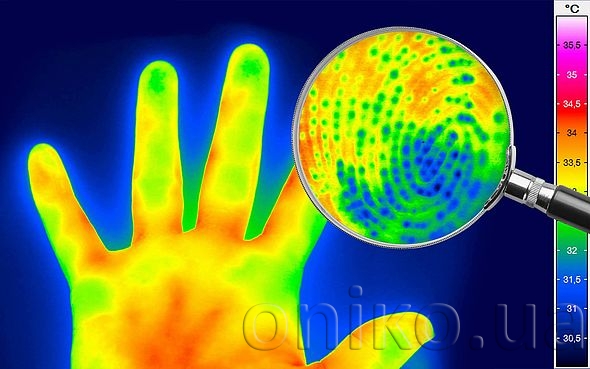

Opto-mechanical MicroScan with (1,280 × 1,024) IR pixels

Frame rate up to 14,593 Hz, GigE Vision compatible

Snapshot detector, internal trigger interface

Extremely short integration times in the microsecond range

Thermal resolution better than 0.025 K

Spectral range

(7.7 … 10.2) μm

Pitch 15 μm
Detector MCT
Detector format (IR pixels) (640 × 512)
Image format with opto-mechanical MicroScan (IR pixels)* (1,280 × 1,024)
Image acquisition Snapshot
Readout mode ITR
Aperture ratio f/2.0
Detector cooling Stirling cooler
Temperature measuring range (-40 … 1,200) °C, up to 2,000 °C*

Measurement accuracy

± 1 °C or ± 1%

Temperature resolution @ 30 °C

Better than 0.025 K

Frame rate (full / half / sub frame)*

Up to 233 / 874 / 2,892 / 14,593 Hz

Window mode

Yes

Focus Manual, motorised or automatically*
Dynamic range Up to 16 bit
Integration time

(10 … 20,000) μs

Rotating aperture wheel and filter wheel*

Up to 5 positions

Interfaces

GigE, 10 GigE*, 2 × CAMLink*, HDMI*

Trigger

3 IN / 2 OUT, TTL

Analogue signals*, IRIG B*

2 IN  / 2 OUT, yes

Tripod adapter

1/4" and 3/8" photo thread, 2 × M5

Power supply

24 V DC, wide-range power supply (100 … 240) V AC

Storage and operation temperature

(-40 … 70) °C, (-20 … 50) °C

Protection degree

IP54, IEC 60529

Dimensions; weight

(244 × 120 × 160) mm*; 4.0 kg (without lens)

Analysis and evaluation software

IRBIS® 3, IRBIS® 3 view, IRBIS® 3 plus*, IRBIS® 3 professional*, IRBIS® 3 control*, IRBIS® 3 online*, IRBIS® 3 process*, IRBIS® 3 active*, IRBIS® 3 mosaic*, IRBIS® 3 vision*

Further functions

Multi Integration Time*

With its ImageIR® 8800, InfraTec offers another top-level thermographic camera model belonging to the ImageIR® high-end camera series. It is equipped with a cooled LWIR-focal-plane array photon detector that provides a format of (640 × 512) IR pixels and operates in snapshot mode. Combining an outstanding thermal resolution of better than 0.025 K with very high frame rates of up to 14,593 Hz and extremely short integration times of only a few microseconds this camera qualifies for airborne biological and geological surveys, non-destructive testing and the analysis of fast thermal processes, which are related to large temperature measuring ranges. Its modular structure which consists of optical, detector and interface modules makes it easily adaptable to the respective application. An integrated trigger interface guarantees a repeatable high-precision triggering of quick procedures. Multiple configurable  digital in- and outputs serve as control ports for the camera or as generator of control signals for external devices. The optical channel consists of exchangeable infrared lens systems as well as application- specific apertures, filters and optical  elements.
