  • InfraTec ImageIR® 7300

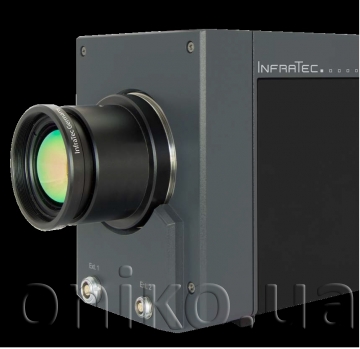

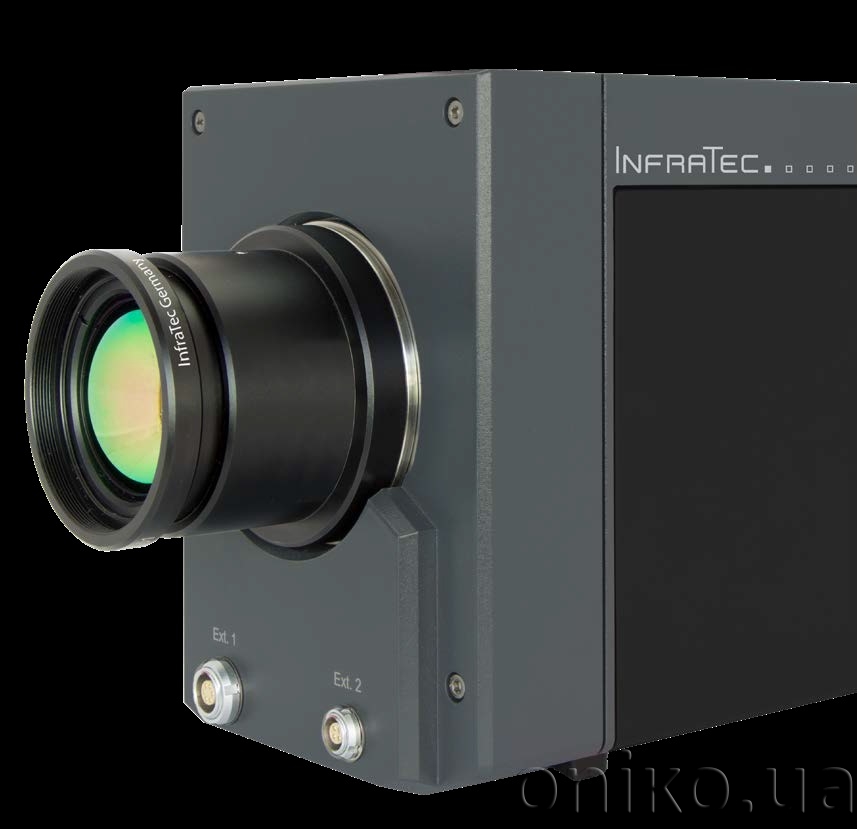

InfraTec ImageIR® 7300

High-end Thermography Camera

Cooled FPA photon detector with (640 × 512) IR pixels
Frame rate up to 1,200 Hz, GigE Vision compatible
Snapshot detector, internal trigger interface
Extremely short integration times in the microsecond range
Pixel size up to 2 μm
Thermal resolution better than 0.02 K

Spectral range

(2.0 … 5.7) μm

Pitch 15 μm
Detector MCT or InSb
Detector format (IR pixels) (640 × 512)
Image acquisition Snapshot
Readout mode ITR / IWR
Aperture ratio f/3.0 or f/2.0
Detector cooling Stirling cooler
Temperature measuring range (-40 … 300) °C

Measurement accuracy

± 2 °C or ± 2 %

Temperature resolution @ 30 °C

MCT: Better than 0.02 K
InSb: Better than 0.025 K

Frame rate (full / half / sub frame)*

MCT: Up to 75 / 300 / 1,200 Hz
InSb: Up to 100 / 326 / 863 Hz

Window mode

Yes* (full frame / sub frame)

Focus Manual
Dynamic range 14 bit
Integration time

(1 … 20,000) μs

Rotating filter wheel*

Up to 5 positions

Rotating aperture wheel*

Up to 5 positions

Interfaces

GigE, HDMI*

Trigger

1 IN / 1 OUT, TTL

Tripod adapter

1/4" and 3/8" photo thread, 2 × M5

Power supply

24 V DC, wide-range power supply (100 … 240) V AC

Storage and operation temperature

(-40 … 70) °C, (-20 … 50) °C

Protection degree

IP54, IEC 60529

Dimensions; weight

MCT: (235 × 120 × 160) mm*
InSb: (241 × 120 × 160) mm*
3.3 kg (without lens)

Analysis and evaluation software

IRBIS® 3, IRBIS® 3 view, IRBIS® 3 plus*, IRBIS® 3 professional*, IRBIS® 3 control*, IRBIS® 3 online*, IRBIS® 3 process*, IRBIS® 3 active*, IRBIS® 3 mosaic*, IRBIS® 3 vision*

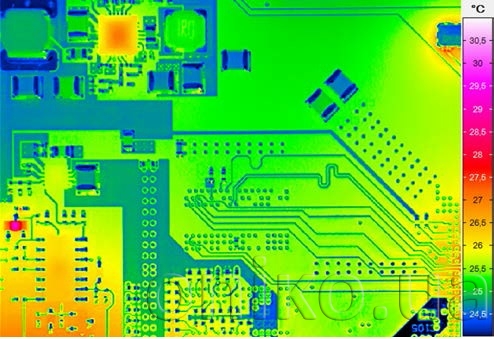

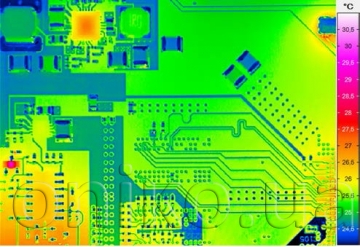

Those, who are looking for a powerful thermographic camera to solve fundamental measurement and testing tasks in the fields of industry and science, that offers an impressive geometrical resolution will find the ImageIR® 7300 a perfect match. Its cooled focal-plane array photon detector provides (640 × 512) IR pixels and a pitch of 15 μm at a constant active detector area. Users, who are testing very small structures on large-scale measurement objects, benefit from substantial plus in terms of efficiency compared to smaller detector formats. In addition, you can choose between MCT and InSb detectors.
The camera supports recording and storing images and sequences with frequencies up to 1,200 Hz. An internal trigger interface guarantees for precise, repeatable triggering of correspondingly fast processes. Two respective inputs and outputs are used to control the camera or to generate digital control signals for external devices. Depending on the character of the measurement and testing situation due to its modular design, most diverse thermographic software and high-quality lenses the ImageIR® 7300 is quite easy to adapt to the on-site conditions.
