InfraTec ImageIR® 8300 hp

Order

High-speed Thermography Camera

Cooled FPA photon detector with (640 × 512) IR pixels

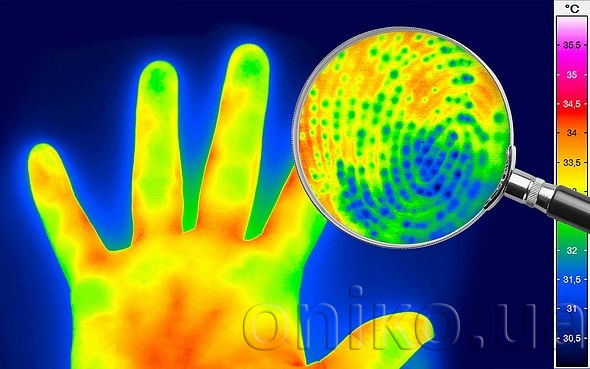

Opto-mechanical MicroScan with (1,280 × 1,024) IR pixels

Full-frame rate up to 355 Hz, GigE Vision compatible

Snapshot detector, internal trigger interface

Extremely short integration times in the microsecond range

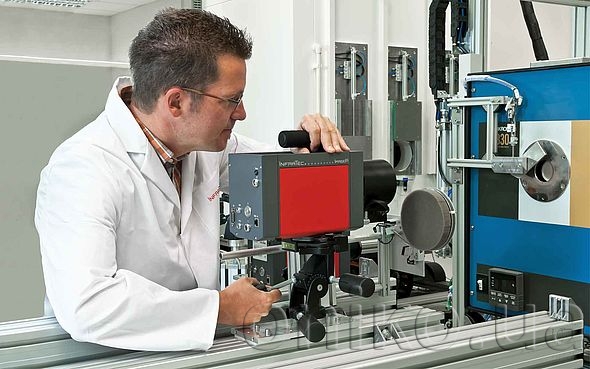

Optimal integration time with HighSense

Pixel size with microscopic lens up to 2 μm

Thermal resolution better than 0.02 K

Spectral range	(2.0 … 5.7) μm
Pitch	15 μm
Detector	MCT or InSb
Detector format (IR pixels)	(640 × 512)
Image format with opto-mechanical MicroScan (IR pixels)*	(1,280 × 1,024)
Image acquisition	Snapshot
Readout mode	ITR / IWR
Aperture ratio	f/3.0
Detector cooling	Stirling cooler
Temperature measuring range	(-40 … 1,500) °C, up to 3,000 °C*
Measurement accuracy	± 1 °C or ± 1%
Temperature resolution @ 30 °C	MCT: Better than 0.02 K InSb: Better than 0.025 K
Frame rate (full / half / sub frame)*	MCT: Up to 232 / 828 / 2,300 / 3,725 Hz InSb: Up to 355 / 670 / 1,200 / 5,000 Hz
Window mode	Yes
Focus	Manual, motorised or automatically*
Dynamic range	Up to 16 bit*
Integration time	(0.6 … 20,000) μs
Rotating filter wheel*	Up to 5 positions
Rotating aperture wheel*	Up to 5 positions
Interfaces	GigE, 10 GigE, 2 × CAMLink, HDMI*
Trigger	3 IN / 2 OUT, TTL
Analogue signals, IRIG-B	2 IN / 2 OUT, yes
Tripod adapter	1/4" and 3/8" photo thread, 2 × M5
Power supply	24 V DC, wide-range power supply (100 … 240) V AC
Storage and operation temperature	(-40 … 70) °C, (-20 … 50) °C
Protection degree	IP54, IEC 60529
Dimensions; weight	MCT: (241 × 120 × 160) mm; InSb: (235 × 120 × 160) mm 3.3 kg (without lens)
Analysis and evaluation software	IRBIS® 3, IRBIS® 3 view, IRBIS® 3 plus, IRBIS® 3 professional, IRBIS® 3 control, IRBIS® 3 online, IRBIS® 3 process, IRBIS® 3 active, IRBIS® 3 mosaic, IRBIS® 3 vision

With its ImageIR® 8300 hp, InfraTec introduces another top level thermographic camera model belonging to the ImageIR®
high-end camera series. The implementation of a digitally interfaced (640 × 512) pixel MWIR detector now allows 355 Hz
full-frame real-time imaging without compromising any thermal accuracy. The ImageIR® 8300 hp and its cooled focal-plane array photon detector reach an outstanding thermal resolution better than 0.02 K. The new version was developed for most demanding operations in research and development and process monitoring fields. Its modular structure consisting of the optical,
detector and interface section, makes the camera easily compatible to the related applications and for tailored configurations. An integrated trigger interface guarantees a repeatable high-precision triggering of quick procedures. Multiple configurable digital inputs and outputs serve as control ports for the camera or as generator of digital control signals for external devices. The optical channel consists of the exchangeable infrared lens as well as application-specific apertures, filters and reference elements. All exchangeable ImageIR® 8300 hp standard lenses can be equipped with a motorised focus unit easily operable from the camera‘s application software. It allows precise, fast and remotely controlled motorised focusing and is part of the autofocus function.
