YM5 PERMANENT MAGNET

Consists of Hinged arms and rotating pole pieces to allow a wide variety of profiles to be magnetised whilst the specially shaped pole pieces permit easy removal from the component. Elements of the YM5 are cast in Magloy 1 for maximum magnetic field strength.

YM5 RE–MAGNETISER
For your convenience Magnaflux supply a re – magnetising unit to bring the YM5 back to its lifting capability of 18 Kg. IT operates by discharging batteries through coils in which the legs are positioned.

YM 5 YOKE
Supplied with keeper bar, which has false indications so you can easily check the magnetisation strength.

Features of the YM5
- Field strength, with pole tips in contact, greater than 7,000 gauss.
- Field strength in centre of 50mm air gap, more than 400gauss.
- Weighs only 3Kg.
- Pull Test - More than 18 Kgs (40 lbs).

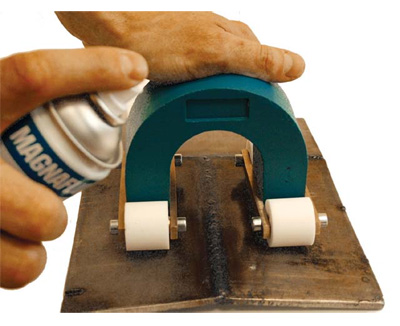

HORSESHOE TYPE PM68 MAGNET

An extremely powerful permanent magnet widely used for magnetising components for crack detection including underwater applications.

Portable, and mobile when used with optional wheels, as illustrated it is available complete with magnetic inks, powders and contrast paint which are optional extra

- Powerful and easy to use.
- Field strength in the centre of Air Gap. 1500 gauss
- Pull Test exceeds 68 Kg
- Available with Nylon Wheels
- Distance between poles 68mm
- Weight. 2.34 Kg
